IPV
Item Pool Visualization
Generate plots based on the Item Pool Visualization concept for
latent constructs. Item Pool Visualizations are used to display the
conceptual structure of a set of items (self-report or psychometric).
Dantlgraber, Stieger, & Reips (2019)
IPV
The aim of IPV is to handily create item pool visualizations, as introduced in: Dantlgraber, M., Stieger, S., & Reips, U. D. (2019). Introducing Item Pool Visualization: A method for investigation of concepts in self-reports and psychometric tests. Methodological Innovations, 12(3), 2059799119884283.
Installation
You can install the released version of IPV from CRAN by calling:
install.packages("IPV")
And the development version from GitHub by calling:
# install.packages("devtools")
devtools::install_github("NilsPetras/IPV")
Usage
This is an example how charts can be created:
library(IPV)
# Here, a toy example provided in the package is used.
# ?HEXACO
# estimate the underlying model from (clean) raw data
x <- ipv_est(HEXACO[ ,c(2:41, 122:161)], "HA")
#> Negative center distance adjusted to 0
#> Negative center distance adjusted to 0
#> Negative center distance adjusted to 0

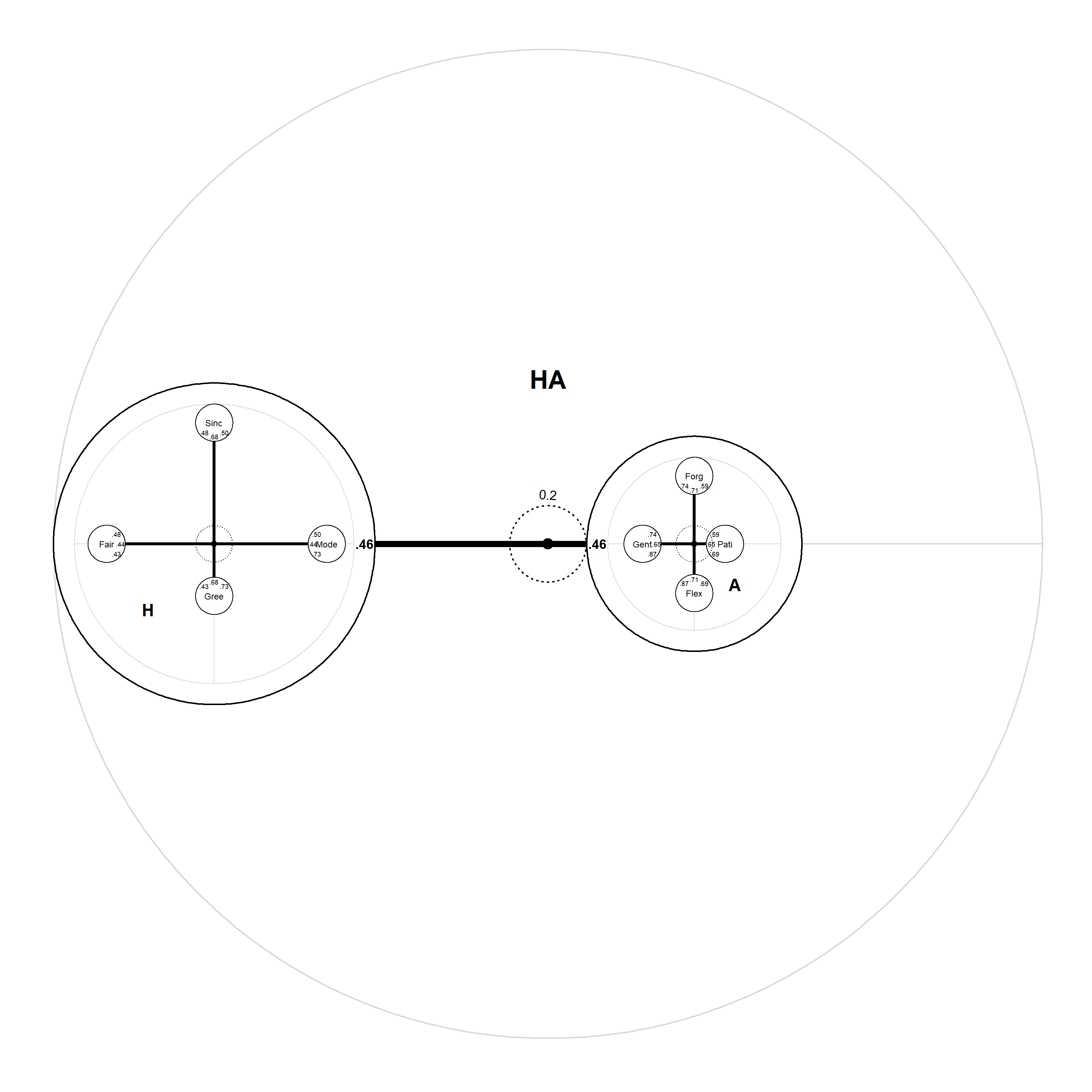

# create a nested chart (one of three available chart types)
nested_chart(x$est)
#> Facet circle radius set to 0.204 based on the data.
#> cor_spacing set to 0.23 based on the data.
#> Relative scaling set to 2.1 based on the data.
#> Axis tick set to 0.2 based on the data.
#> dist_construct_label set to 0.333 based on the data.
# the next step would be to customize the appearance
For further introduction, please check out the vignette.
browseVignettes("IPV")
#> No vignettes found by browseVignettes("IPV")
Citation
When using item pool visualization, please cite:
Dantlgraber, M., Stieger, S., & Reips, U. D. (2019). Introducing Item Pool Visualization: A method for investigation of concepts in self-reports and psychometric tests. Methodological Innovations, 12(3), 2059799119884283.
