Hierarchy-Aware, Interactively Editable Color Palettes for Clusters

Assigns perceptually-informed color palettes to clustered data (e.g. scRNA-seq clusters / cell subtypes from 'Seurat' or plain UMAP coordinate tables), where clusters that belong to the same "family" (e.g. subtypes of T cells) can be colored either harmoniously (shared hue, varying shade) or with maximal contrast (with family membership encoded via a secondary channel). Families can be auto-detected from embedding-space hierarchical clustering or supplied explicitly, and every generated color remains individually overridable, with manual overrides preserved across regeneration. Colors are constructed in the HCL space as in Zeileis et al. (2020) , separated using the CIEDE2000 color difference of Sharma, Wu and Dalal (2005) , and checked for color-vision deficiency using the simulation of Machado, Oliveira and Fernandes (2009) . Core algorithms have no UI dependencies; an optional interactive 'shiny' UI is provided separately.

Palettome

Hierarchy-aware, interactively editable color palettes for clustered data — built for scRNA-seq clusters/cell subtypes (Seurat, UMAP) but not hard-dependent on Seurat.

LLM was used in this project to speed up the development.

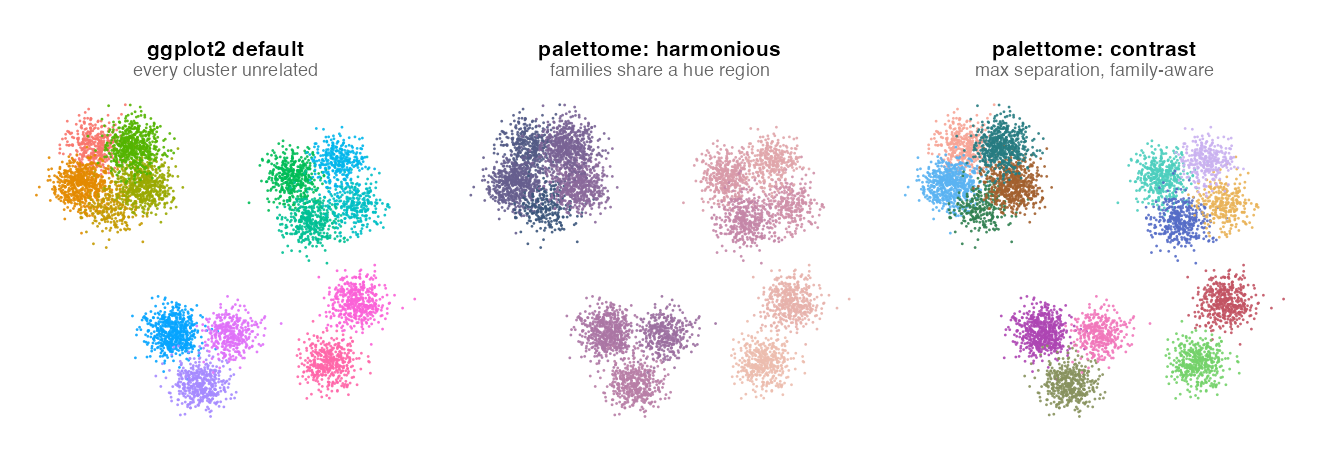

Clusters that belong to the same family / compartment (e.g. subtypes of T cells, subtypes of myeloid cells) can be colored either:

• harmonious — a coordinated palette in a perceptually uniform space. harmonious_style = "sweep" (default) lays the families along one analogous hue arc with a shared monotone lightness ramp and muted chroma (e.g. a smooth blue → purple → rose → tan progression is just one example — a different seed gives a genuinely different arc: green, teal, red, gold, ..., not a small jitter around one fixed look — and sweep_anchors lets you specify the exact gradient to sweep through instead of an automatic one); harmonious_style = "per_family" gives each family its own hue and colors its members as graded shades of it.
• contrast — every cluster gets a maximally distinguishable color (greedy max-min selection in Lab space), with family membership still visible through a secondary color channel (the family's own accent/tag color).

Color choice is color-theory aware even for random seeds: chroma is kept inside the displayable gamut and away from the neon and muddy yellow-green zones, hues are spread with a low-discrepancy sequence, and each hue gets its natural lightness. When neighbor information is supplied, families that are adjacent in the embedding get contrasting hues by default (or analogous, by choice — neighbor_hues), and within a family spatially-adjacent clusters are given far-apart shades for local contrast.

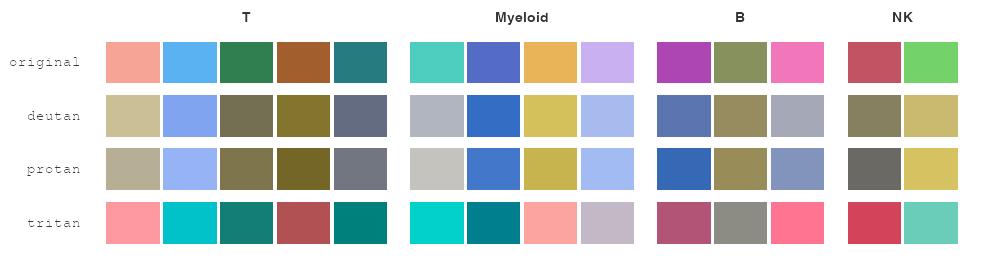

simulate_cvd() and the cvd argument of the plotting functions preview a palette as it appears with color-vision deficiency:

Every generated color can be overridden by hand, and manual overrides survive re-running the generator (new mode, new seed, edited families) until explicitly reset; while manual overrides are in place the remaining colors auto-fit to the lightness/chroma envelope of your picks.

Core vs. UI

Core is fully independent of the UI. as_cluster_data(), detect_families(), generate_palette(), plot_palette_static(), plot_swatches(), export_palette_json()/export_palette_csv(), import_palette_json(), downsample_stratified(), color_distance(), and simulate_cvd() depend only on colorspace, farver, stats, graphics, methods, utils, and jsonlite — all listed in Imports, so a plain install.packages("palettome") (or devtools::load_all()) gives you a fully working package with zero UI packages installed.

The interactive UI is exactly one function, launch_palettome_ui(). It requires shiny, plotly, colourpicker, and shinyjs, all listed under Suggests only. If they aren't installed, launch_palettome_ui() fails with a message telling you which packages to install and reminding you that every other function still works without them — it never blocks or breaks the rest of the package.

Quick start (core only)

devtools::load_all()  # or library(palettome) once installed

pdata <- as_cluster_data(
  my_df,
  coord_cols = c("UMAP_1", "UMAP_2"),
  cluster_col = "cluster"
)

fam <- detect_families(pdata, k = 4)          # auto-detect via hclust

# fam$neighbors carries centroids (or a connectivity matrix) so families and
# clusters can be placed in space — pass it through for neighbor-aware color
session <- generate_palette(
  fam$assignment,
  mode = "harmonious", harmonious_style = "sweep",
  neighbors = fam$neighbors, seed = 1
)

plot_palette_static(pdata, session)           # ggplot2 if installed, base R otherwise
plot_swatches(session)                        # family-grouped swatch legend
export_palette_json(session, "palette.json")

Key generate_palette() arguments:

To resume editing later, or hand off manual overrides:

session <- set_manual_color(session, cluster = "3", color = "#2E5A87")
# several at once: one color each (or a single color for all); ids not in
# the session are skipped with a warning
session <- set_manual_color(session, cluster = c("4", "5"), color = c("#6E6E6E", "#C9A227"))
session2 <- generate_palette(fam$assignment, session = session, mode = "contrast")
# clusters/families with manual_color == TRUE keep their color unchanged;
# with lightness_range/chroma_range = "auto" the rest fit to the manual picks

optimize_color("#7B00FF", session = session2)  # snap a hand-picked hex into the palette envelope

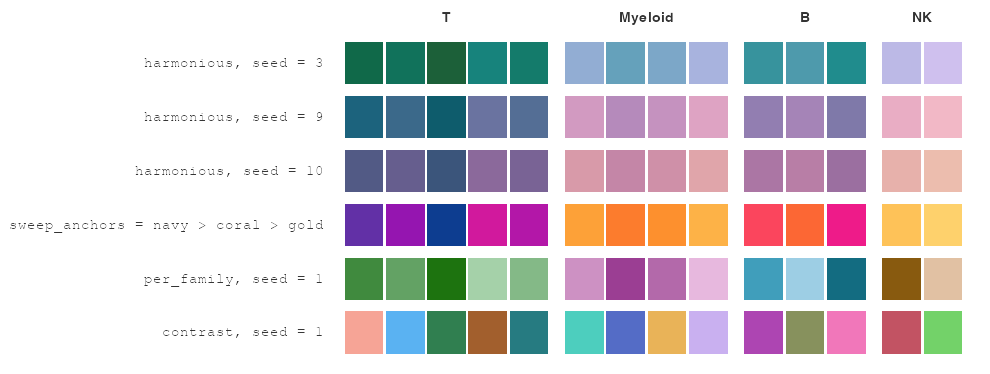

Different seeds give genuinely different sweep gradients (not a small jitter around one look), or specify the exact gradient yourself:

generate_palette(fam$assignment, mode = "harmonious", seed = 7)  # try a few seeds
generate_palette(fam$assignment, mode = "harmonious",
  sweep_anchors = c("#0B3D91", "#FF5733", "#FFD166"))            # your own gradient

session$clusters/session$families are already plain data frames (see the JSON schema below), but for the common case of just needing the colors themselves -- to hand to Seurat::DimPlot(cols = ...), ggplot2::scale_color_manual(values = ...), etc. -- use:

cluster_colors(session)                     # named vector: c(c1 = "#4E5716", c2 = "#899925", ...)
cluster_colors(session, format = "data.frame") # data frame: cluster, color
family_colors(session)                      # same, one row per family

Working with a Seurat object

as_cluster_data() has a Seurat method, so you don't need to hand-extract embeddings/metadata yourself:

pdata <- as_cluster_data(
  seurat_obj,
  reduction = "umap",           # any reduction name (Seurat::Embeddings())
  dims = 1:2,                   # or 1:3 for a 3D embedding
  cluster_col = "seurat_clusters", # any column of seurat_obj[[]]
  family_col = NULL             # optional: a metadata column with an explicit parent/family label
)
# from here on it's identical to the data-frame path:
fam <- detect_families(pdata, k = 4)
session <- generate_palette(fam$assignment, mode = "harmonious", seed = 1)

# hand the result back to Seurat's own plotting:
Seurat::DimPlot(seurat_obj, reduction = "umap", group.by = "seurat_clusters",
                cols = cluster_colors(session))

This method requires the Seurat package (Suggests-only, checked with a friendly error if missing) but nothing else in the package does -- everything downstream of as_cluster_data() only ever sees the plain palettome_data structure either input path produces.

Interactive UI

install.packages(c("shiny", "plotly", "colourpicker", "shinyjs"))
session <- launch_palettome_ui(pdata)                    # auto-detects families
session <- launch_palettome_ui(pdata, session = session) # resume a saved session
cluster_colors(session)                                  # your edited colors

launch_palettome_ui() returns the edited session when the app closes -- either via the Done -- return session to R button or by interrupting R (Esc / Ctrl+C) -- so assigning its result keeps every change made in the UI.

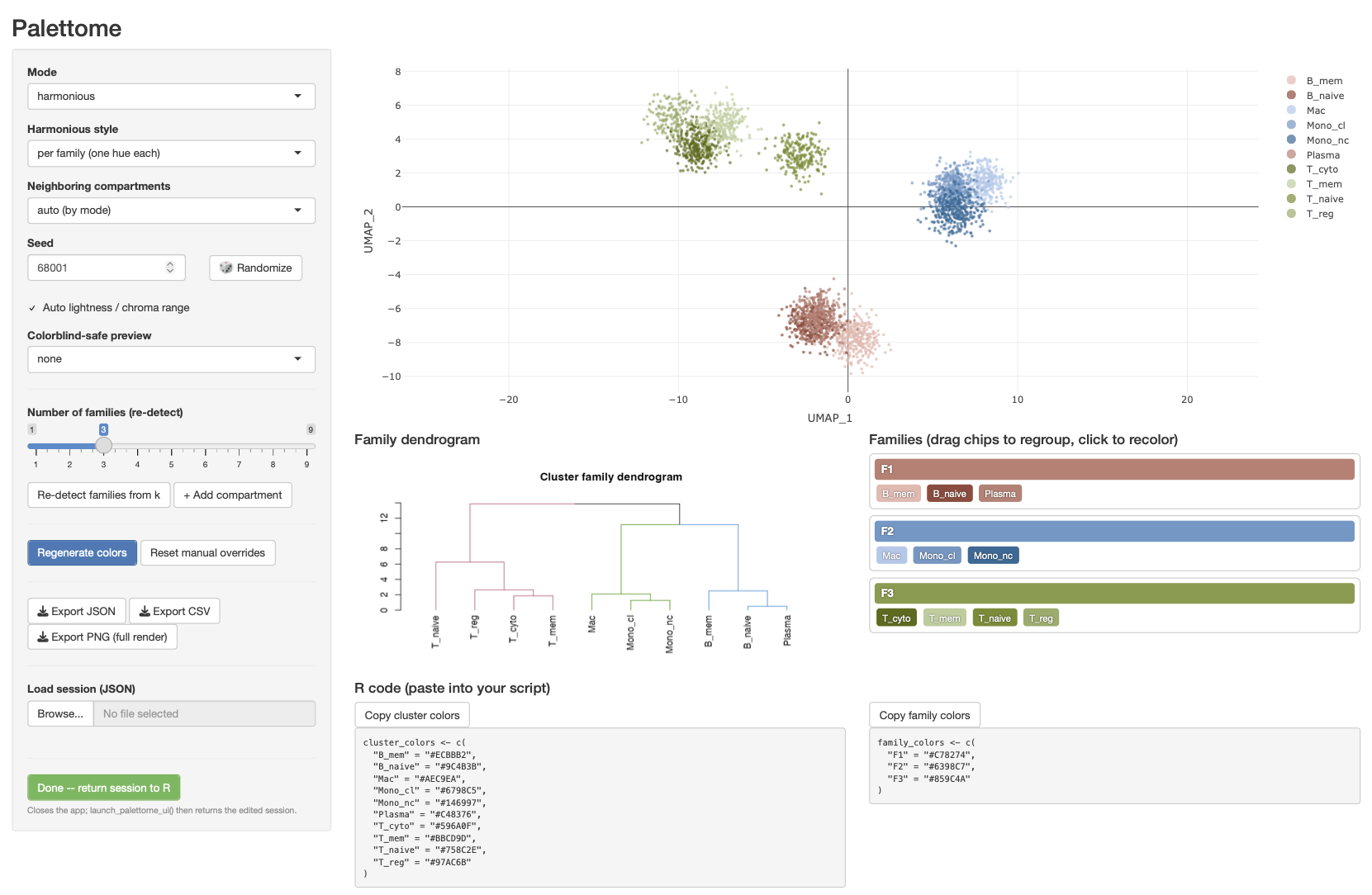

The app shows a WebGL (plotly scattergl) scatter plot of the embedding (fixed 1:1 x/y aspect ratio, so distances aren't visually distorted), a family dendrogram, and a drag-and-drop compartment panel: drag a cluster chip into a different family bin to regroup it, hit + Add compartment to make a new (empty, dashed) bin to drag clusters into, and empty compartments are removed automatically. Mode, harmonious style, neighbor-hue rule, seed, and a colorblind simulation preview are all live. Hit 🎲 Randomize next to the seed for a fresh sweep gradient at a click, or type 2+ comma- separated hex colors into Custom gradient anchors to sweep through your own colors instead of an automatic gradient (a live swatch strip previews what you typed). When the auto light/chroma toggle is switched off, the Lightness- and Chroma-range sliders each get a swatch strip underneath rendered in the current palette's own hue, dimmed outside the selected sub-range -- so the numeric range reads as actual colors, not just two numbers. An R code panel shows the current cluster and family colors as named-vector R code (cluster_colors <- c("3" = "#2E5A87", ...)) with a copy button, ready to paste into a script. Sessions export as JSON/CSV, and the final plot exports as a full-resolution PNG.

Click anywhere on a chip or a family's whole color bar (not just its label) to open the recolor dialog:

• The hex/swatch picker and three raw HSL sliders (Hue/Saturation/ Lightness -- the everyday color-picker model, distinct from the HCL space the generator itself reasons in) both edit the same color and stay in sync either direction; nothing stops you from picking a color the generator would never have chosen -- that's the point of exposing raw controls, and the algorithm won't fight you on it.
• A live readout underneath always shows both the color's raw HSL and its perceptual HCL (hue/chroma/lightness) breakdown, so you can see the actual parameters behind whatever's currently in the box, program-picked or hand-edited.
• Optimize snaps the current color's lightness/chroma into the palette's envelope while keeping its hue (calls optimize_color()).
• Recoloring a family immediately reshades its non-manual member clusters around the new hue (in both harmonious styles) -- pick a family's color and its subclusters update automatically, rather than needing a separate "Regenerate colors" click.

The JSON schema (stable contract)

export_palette_json() writes, and import_palette_json() reads, this structure. It is deliberately plain and language-agnostic — a future Python/Scanpy implementation can read and write the exact same file without any R-specific types.

{
  "schema_version": "1.0",
  "clusters": [
    { "cluster": "0", "family_id": "F1", "color": "#3E7CB1", "manual_color": false, "n_cells": 1523 },
    { "cluster": "1", "family_id": "F1", "color": "#7FB1DA", "manual_color": true,  "n_cells": 842 }
  ],
  "families": [
    { "family_id": "F1", "color": "#2C5F8A", "manual_color": false }
  ],
  "params": {
    "mode": "harmonious",
    "harmonious_style": "sweep",
    "sweep_anchors": null,
    "neighbor_hues": "coherent",
    "seed": 1,
    "lightness_range": [34, 82],
    "chroma_range": [24, 46],
    "hue_range": [0, 360],
    "cvd": "none",
    "auto_lightness": true,
    "auto_chroma": true
  }
}

• clusters[].color is the per-cluster fill color actually used for plotting.
• families[].color is the family's representative/accent color: in harmonious mode it's a point on the family's part of the sweep (or the family's base hue for per_family); in contrast mode it's the secondary channel that shows family membership even though cluster colors themselves are maximally spread apart.
• manual_color: true marks an entry a person set by hand; generate_palette() never overwrites these unless reset_overrides() is called first.
• n_cells is informational (legend sizing, etc.) and optional/nullable.
• params.lightness_range / chroma_range are always the resolved numeric ranges; auto_lightness / auto_chroma record whether they were derived automatically (so a reload can keep auto-fitting).

CSV export (export_palette_csv()) writes the clusters table (and optionally the families table) as plain CSV with the same column names.

Data input contract

as_cluster_data() accommodates either input into one palettome_data object so every other function only has to know one shape:

• Data frame: as_cluster_data(df, coord_cols = c("UMAP_1","UMAP_2"[,"UMAP_3"]), cluster_col = "cluster", family_col = NULL, cell_id_col = NULL)
• Seurat object: as_cluster_data(seurat_obj, reduction = "umap", dims = 1:2, cluster_col = "seurat_clusters", family_col = NULL) (requires the Seurat package, Suggests-only)

If family_col/an explicit family is supplied, detect_families() uses it directly; otherwise it hierarchically clusters cluster centroids (or a supplied cluster-cluster connectivity/distance matrix) and lets you pick a cut (k or h), with plot_dendrogram() for a preview. Either way, the resulting cluster -> family_id assignment is just a plain data frame you (or the UI's drag-and-drop panel) can freely rewrite afterward — detection is a starting point, not a final answer.

Performance for large datasets

See inst/benchmark/ for the full write-up. In short: the browser never receives one point per cell for interactive editing. downsample_stratified() precomputes a per-cluster-stratified subsample (default cap 50,000 points) server-side for live dragging/recoloring, and plotly's WebGL scattergl trace renders that subsample smoothly; a full, un-subsampled render is only produced on final PNG export via plot_palette_static(). Cluster centroids, hierarchy, and per-cluster cell counts are precomputed once (compute_centroids()) so hierarchy edits and recoloring never touch the raw per-cell table at all.

Tests

devtools::test()

Covers: perceptual-distance thresholds and gamut/muddy-zone constraints for contrast-mode selection; the harmonious sweep being a monotone-lightness analogous progression; neighbor_hues switching adjacent families between analogous and contrasting; spatially-adjacent subclusters getting far-apart shades; lightness_range = "auto" fitting to manual picks; optimize_color() preserving hue; and manual overrides surviving generate_palette() re-runs (including across a family reassignment). Plus unit tests for the color-theory primitives (R/color_theory.R) and adjacency helpers (R/adjacency.R).
