Least Squares Sparse Principal Components Analysis

Implements least-squares sparse principal component analysis with cardinality constraints. The package has an efficient C++ backend and provides functions for fitting, summarizing, comparing, and visualizing sparse principal component models. The approach follows Merola (2015) and Merola and Chen (2019) .

Package spca

This package contains functions to compute, visualize and compare Least Squares Sparse Principal Components Analysis (LS-SPCA). Differently from other conventional SPCA methods, LS-SPCA provides a close approximation to the PCs, thus something like PCA with sparse weights.

An efficient C++ backend makes the fitting functions fast and memory efficient. Careful input validation and error handling prevents crashes and provides useful error and warning messages.

Methodological details, references and full presentation can be found in the spca_extended vignette.

Installation

The stable release version can be installed from CRAN

install.packages("spca")

The current development version can be installed from GitHub with

remotes::install_github("merolagio/spca")

Usage

The main function spca() computes the sparse weights and various statistics, such as the variance explained by each sparse component (sPC). In a typical LS-SPCA workflow, the number of sPCs to compute is chosen by examining visually the eigenvalues of the covariance/correlation matrix. These can be computed and stored in a compatible object of class (pca, spca) with the function pca().

Different methods can be applied to class spca objects: additionally to standard print(), summary() and plot(), also aggregate_by_group() (to visualize the contribution by scale), change_sign() and show_weights() and show_correlations() are available.

The function compare_spca() compares two or more spca solutions, aggregate_by_group() summarizes weights or contributions by group, and new_spca() creates an spca object from a set of weights. Additional methods include show_weights(), which displays nonzero weights or contributions; show_correlations(), which displays correlations among sPCs and between sPCs and the corresponding PCs; and change_sign(), which changes the signs of selected components and their associated quantities. The functions mp_qqplot() and scree_plot() produce diagnostic plots from an object returned by pca().

Example

Load data

The holzinger dataset is the small classic Holzinger-Swineford dataset with 145 cases on 12 variables grouped in 4 scales.

library(spca)
data(holzinger)
dim(holzinger)
#> [1] 145  12
data(holzinger_scales)
holzinger_scales
#>  [1] SPL SPL SPL VBL VBL VBL SPD SPD SPD MTH MTH MTH
#> Levels: SPL VBL SPD MTH

Preliminary PCA

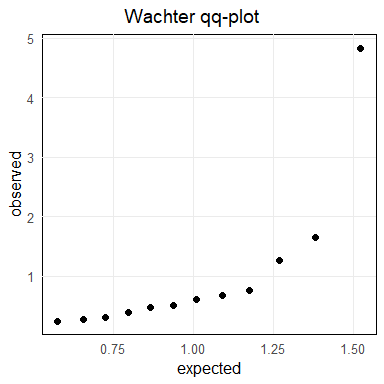

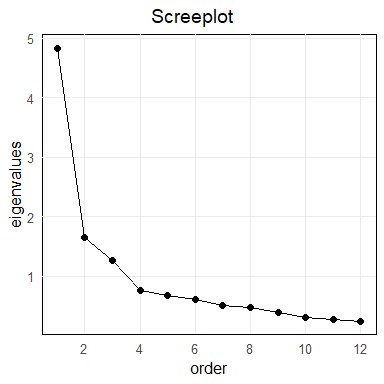

ho_pca = pca(holzinger, screeplot =  TRUE, qq_plot = TRUE)
summary(ho_pca, cols = 10)
#>         PC1   PC2   PC3   PC4   PC5   PC6   PC7   PC8   PC9  PC10
#> Vexp  40.2% 13.7% 10.6%  6.4%  5.6%  5.1%  4.3%  3.9%  3.2%  2.6%
#> Cvexp 40.2% 53.9% 64.5% 70.9% 76.5% 81.6% 85.9% 89.8% 93.0% 95.6%
#> Card     12    12    12    12    12    12    12    12    12    12

The screeplot would call for four components while the qqplot indicates three. We can settle for 4 components, ucknowledging that the fourth PC may be explaining mainly noise.

Compute the sparse weights

Important parameters in the spca() function are:

• alpha which controls the minimum the minimum proportion of ;
• objective sets which criterion is used to stop variable selection: cumulative variance explained (RCVEXP) by the sPCs, relative to that explained by the corresponding PCs [default], or $R^2$ with the current PC;
• n_comps the number of components to compute;
• method the LS-SPCA method to use: “u” (for uncorrelated), “c” (for correlated) [default]) or “p” (for projection);
• var_selection which variable selection to use “forward” [default], “stepwise”, or “backward”).

See the spca help for details on these and more parameters.

The following command computes four sPCs with default settings: alpha = 0.95, var_selection = forward, method = "c" that selects the cSPCA method. Hence, we expect each sPC to yield at least 95% cumulative VEXP, allowing some very mild correlation between sPCs.

ho_spca = spca(holzinger, n_comps = 4)

Inspect spca results

Methods are print, plot (several options available) and summary. By defaut, plot and print show the percentage contributions, that is the weights scaled to have sum of their absolute values equal to 1.

ho_spca # print
#> Percentage contributions
#>             sPC1   sPC2   sPC3   sPC4
#> visual     11.9%                43.9%
#> cubes                    31.4% -21.3%
#> flags      14.2%         23.0%
#> paragraph        -21.6%
#> sentence   19.6%        -29.7%
#> wordm            -22.3%
#> addition   12.2%  27.5% -15.9% -10.6%
#> counting          28.6%
#> straight   12.3%
#> deduct     13.7%               -24.3%
#> series     16.1%
#>            -----  -----  -----  -----
#> Cvexp      38.6%  51.5%  61.4%  67.5%
#>

summary(ho_spca, cor_with_pc = TRUE)
#>         sPC1  sPC2  sPC3  sPC4
#> Vexp   38.6% 12.9%  9.9%  6.1%
#> Cvexp  38.6% 51.5% 61.4% 67.5%
#> Rvexp  96.0% 94.5% 93.5% 95.3%
#> Rcvexp 96.0% 95.6% 95.3% 95.3%
#> Card       7     4     4     4
#> r      0.978 0.946 0.925 0.762

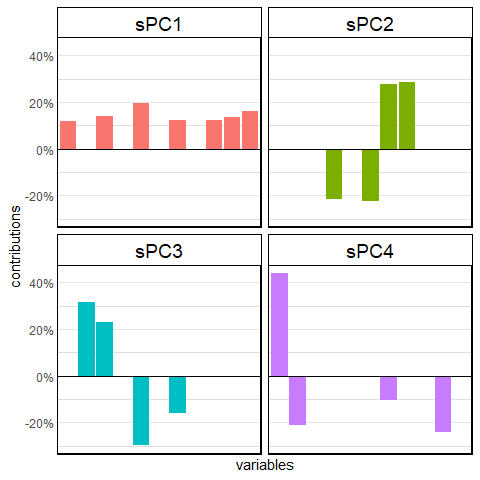

plot(ho_spca, plot_type = "bar")

#sPCs correlation
show_correlations(ho_spca)
#>         sPC1  sPC2  sPC3  sPC4
#> sPC1    1.00 -0.01 -0.03 -0.02
#> sPC2   -0.01  1.00 -0.08 -0.10
#> sPC3   -0.03 -0.08  1.00 -0.06
#> sPC4   -0.02 -0.10 -0.06  1.00
#>        ----- ----- ----- -----
#> sPC-PC  0.98  0.95  0.92  0.76

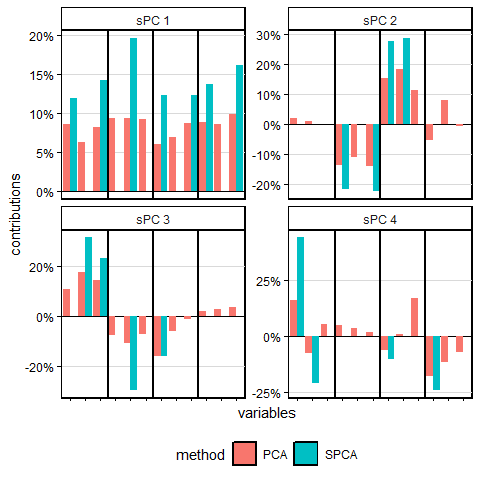

the sparse weights can be compared to the full PCA weights with compare_spca

compare_spca(list(ho_pca, ho_spca), variable_groups = holzinger_scales,
             x_axis_var_names = FALSE,  methods_names = c("PCA", "SPCA")
             )

#>        C1.M1  C1.M2  C2.M1  C2.M2  C3.M1  C3.M2  C4.M1  C4.M2
#> Vexp    40.2%  38.6%  13.7%  12.9%  10.6%   9.9%   6.4%   6.1%
#> Cvexp   40.2%  38.6%  53.9%  51.5%  64.5%  61.4%  70.9%  67.5%
#> Rvexp  100.0%  96.0% 100.0%  94.5% 100.0%  93.5% 100.0%  95.3%
#> Rcvexp 100.0%  96.0% 100.0%  95.6% 100.0%  95.3% 100.0%  95.3%
#> Card       12      7     12      4     12      4     12      4
#> abs_r    1.00   0.98   1.00   0.95   1.00   0.92   1.00   0.76

The variable_groups = group_factor adds lines separating variable groups. Adding print_weights = TRUE would show the contributions side by side.

Other plot types are available:

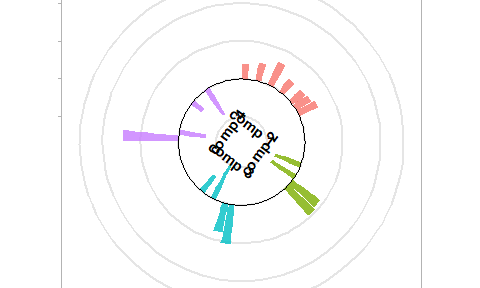

Circular:

plot(ho_spca, plot_type = "c") # "c" for "circular"

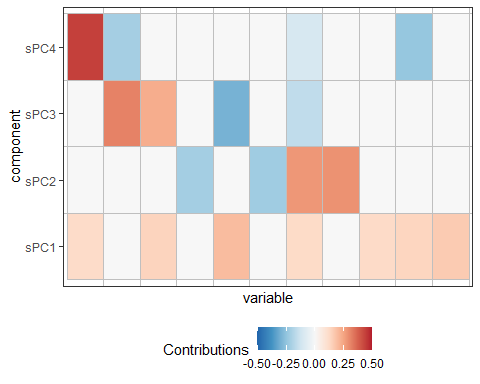

Heatmap:

plot(ho_spca, plot_type = "h", controls = list(legend_position = "b")) # "h" is enough to call "heatmap" type and "b" to indicate "bottom".

Variable groups

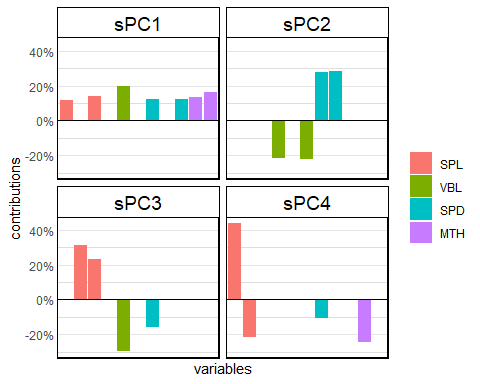

The variables in the holzinger dataset belong to four different scales, recorded in the factor holzinger_scales. These can be differentiated in the barplot

plot(ho_spca, plot_type = "bars", variable_groups = holzinger_scales, controls = list(legend_position = "right"))

aggregate_by_group(ho_spca, variable_groups = holzinger_scales)
#>      sPC1   sPC2   sPC3   sPC4
#> SPL 26.0%         54.4%  22.6%
#> VBL 19.6% -43.9% -29.7%
#> SPD 24.6%  56.1% -15.9% -10.6%
#> MTH 29.8%               -24.3%

Comparison of two or more spca solutions

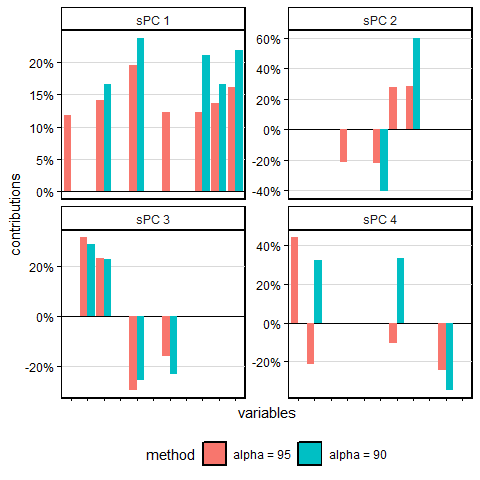

Compare the CSPCA solutions with alpha = 0.95 those with alpha = 0.90.

ho_spca90 = spca(holzinger, n_comps = 4, alpha = 0.9)

compare_spca(obj_list = list(ho_spca, ho_spca90),
             methods_names = c("alpha = 95", "alpha = 90"))

#>        C1.M1 C1.M2 C2.M1 C2.M2 C3.M1 C3.M2 C4.M1 C4.M2
#> Vexp   38.6% 37.3% 12.9% 11.2%  9.9%  9.9%  6.1%  6.3%
#> Cvexp  38.6% 37.3% 51.5% 48.5% 61.4% 58.4% 67.5% 64.7%
#> Rvexp  96.0% 92.8% 94.5% 81.9% 93.5% 93.4% 95.3% 97.8%
#> Rcvexp 96.0% 92.8% 95.6% 90.0% 95.3% 90.6% 95.3% 91.2%
#> Card       7     5     4     2     4     4     4     3
#> abs_r   0.98  0.96  0.95  0.87  0.92  0.94  0.76  0.08

Practical recommendations

The default settings provide a practical starting point for most analyses. Forward selection is recommended for routine use; stepwise and intensive selection are more suitable for smaller problems, while backward elimination can be expensive. The power method is mainly useful for large matrices.

Matrix size refers mainly to the number of variables for the tall-matrix engine and to both dimensions for the fat-matrix engine. The recommendations concern computational cost rather than guaranteed improvements in the solution. ```
